| 產品代號 |
尺寸規格 |
適用轉速/分 |
台制(螺絲尺寸) |
英制(螺絲尺寸) |
公制(螺絲尺寸) |
| HD14 |
14mm |
800~1200/轉 |
4分 |
4/8" |
12.70mm |
| HD15 |
15mm |
| HD16 |
16mm |
| HD17 |
17mm |
640~960/轉 |
- |
- |
- |
| HD18 |
18mm |
5分 |
5/8" |
15.90mm |
| HD19 |
19mm |
- |
- |
- |
| HD20 |
20mm |
6分 |
3/4" |
19.05mm |
| HD21 |
21mm |
531~800/轉 |
| HD22 |
22mm |
| HD23 |
23mm |
- |
- |
- |
| HD24 |
24mm |
7分 |
8/7" |
22.20mm |
| HD25 |
25mm |
430~640/轉 |
| HD26 |
26mm |
| HD27 |
27mm |
- |
- |
- |
| HD28 |
28mm |
8分 |
1" |
25.40mm |
| HD29 |
29mm |
- |
- |
- |
| HD30 |
30mm |
9分 |
11/8" |
28.60mm |
| HD31 |
31mm |
370~550/轉 |
- |
- |
- |
| HD32 |
32mm |
- |
- |
- |
| HD33 |
33mm |
- |
- |
- |
| HD34 |
34mm |
1寸 |
12/8" |
31.75mm |
| HD35 |
35mm |
| HD43 |
43mm |
- |
- |
- |
- |
| HD47 |
47mm |
- |
- |
- |
| HD48 |
48mm |
- |
- |
- |
| HD49 |
49mm |
- |
- |
- |
| HD50 |
50mm |

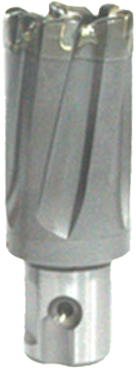

●產品用途：適用大部分品牌鑽孔機。
●產品特色：
◎ 中心頂針自動排頭、校正、冷卻等效果。
◎ 可快速貫穿1"厚，用710轉速，於35秒內貫穿。
◎ 誤差小，1"誤差少於兩條以內。
◎ 採用一般及快速二接頭。
●產品包裝： 單個裝
深孔圓穴鋸-螺絲尺寸對照表
| 台制 |
英制 |
公制 |
圓穴鋸規格 |
| 4分 |
4/8" |
12.70mm |
15-16mm |
| 5分 |
4/8" |
15.90mm |
18mm |
| 6分 |
4/8" |
19.05mm |
20-22mm |
| 7分 |
4/8" |
22.20mm |
24-26mm |
| 8分 |
4/8" |
25.40mm |
28mm |
| 9分 |
4/8" |
28.60mm |
30mm |
| 1寸 |
4/8" |
31.75mm |
34-35mm |
| 中心頂針 |
|
|
7.99x80mm |
| 規格 |
圓穴鋸 |
深孔圓穴鋸 |
| 6mm |
V |
|
| 15-18mm |
V |
V |
| 19-25.5mm |
V |
V |
| 26-30mm |
V |
V |
| 31-35mm |
V |
V |
| 36-40mm |
V |
V |
| 41-45mm |
V |
V |
| 46-50mm |
V |
V |
| 51-55mm |
V |
V |
| 56-59mm |
V |
|
| 60-65mm |
V |
|
| 66-70mm |
V |
|
| 71-75mm |
V |
|
| 76-80mm |
V |
|
| 81-85mm |
V |
|
| 85-90mm |
V |
|
| 91-95mm |
V |
|
| 96-99mm |
V |
|
| 100mm |
V |
|
|
